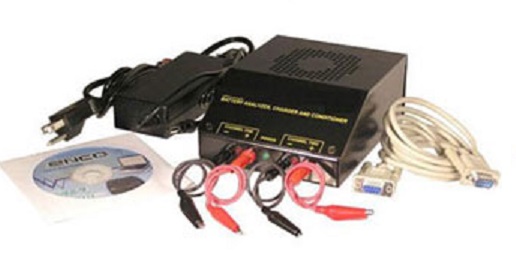

                    NRTL Certified Two Channel Battery Analyzer, 12 - 2000mA upto 18.5V With Laptop





BST-UBA5 is a compact two-channel precision battery analyzer with Laptop, which is features :
  • Works with all battery chemistries (NiCd, NiMH, SLA, lead-acid, lithium-ion, lithium polymer, and primary batteries).
  • Fully programmable: you can set all charge and discharge currents, voltage settings, and charge algorithms.
  • Includes easy to use and powerful software that allows you to graphically design your battery analysis routines and can simultaneously control over 100 UBA5s from one PC.
  • Can run one test cycle to check capacity or thousands to test battery life.
  • Comes with two channels that can each analyze a battery AT 1Ma - 2000mA range up to 18.5V
  • Stores all results in industry standard text format that you can import into your favorite spreadsheet
  • Battery temperature sensor option use ours, use yours, or use your battery's built-in sensor.
  • Two-year warranty and 30-day money-back guarantee.
  • Lead-free/RoHS, FCC approval, and CE Mark.
Voltage
  • Two ranges: 0 to 6.5V and 0 to 18.5 V (accuracy ±0.2% rdg ±10mV)
  • Li-ion cells: 1 to 5 cells in series
  • NiCd, NiMH: 1 to 16 cells in series
  • Lead-acid: 1 to 9 cells in series
Capacity to measure
  • 20mA - 120Ah
    •
Charging & Discharging Current
  • Charge at 1 mA - 2000 mA per channel
  • Discharge at 12mA - 3000 mA per channel with 45W per channel limit (90W with both channels combined)
  • All power supplies are universal input, i.e. they work in North America, Europe, or Asia.

Power limit
  • 45W per channel (90W with both channels combined)

Accuracy
  • ±0.5% reading ±2mA

Resolution
  • 0.1mAh

Miscellaneous
  • Battery input: Banana connectors (two pairs of cables with alligator clips included).
  • Accessory ports Two. Allows expansion with analog inputs and digital output lines.
  • Power input 15 to 26VDC, 4.5A max.
  • 120/240VAC universal power supply

Compliance
  • Approvals CE and FCC, RoHS, and WEEE compliant.
  • NRTL certificated

Dimension & Weight
  • 130mm x 170mm x 75mm (WxLxH),
  • 820 g

Optional at extra cost

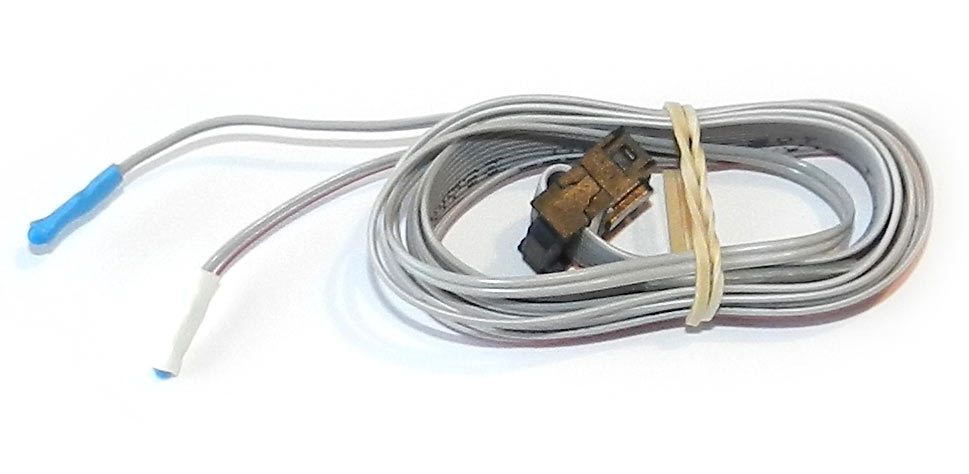

  • Temperature probes ( 0- 100°C) for battery temperature monitoring and charge termination).(pic 1)

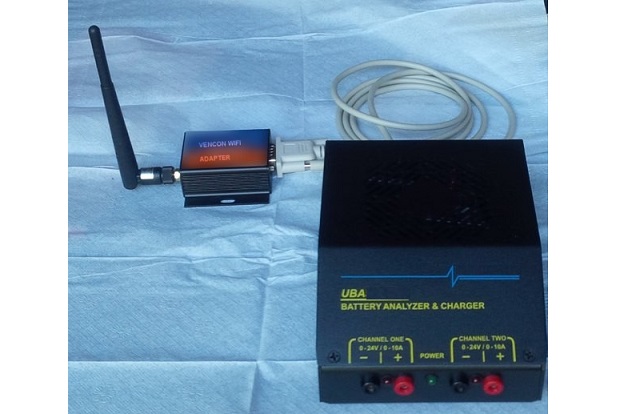

  • Wifi adaptor which allows wireless control of the analyzer over an existing wifi network. (pic 2)

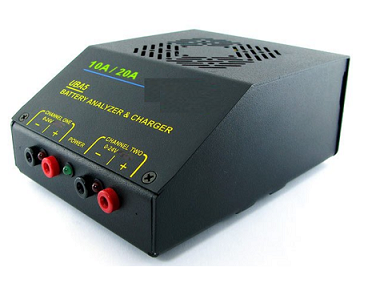

  • The high current version of the UBA5 with a 10A or 20A per channel maximum load current is available. It is designed for testing of lithium-ion single or two cell batteries. (Pic.3)

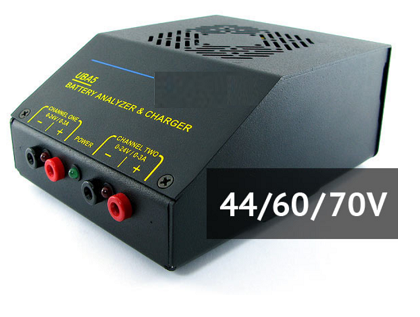

  • The high current version of the UBA5 with 44V, 60V or 70V per channel is available (pic 4)
  • Labview driver is available for DIY software at the extra cost


Software & Laptop
  • WinXP to Win10 & Linux-Wine Console software included.
  • The brand new laptop computer is included with pre-installed the software
  • Note: First time user must buy the laptop to save time for installing and testing software
    •
