MTI CORPORATION, USA

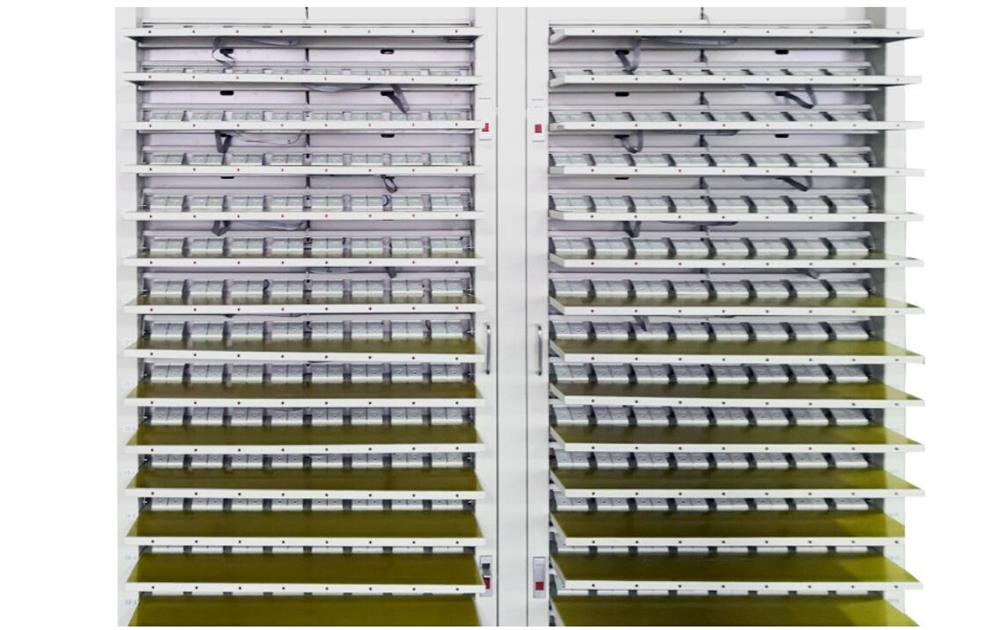

                         128 Channel Battery Analyzer (Max. 5V) w/ Cylindrical or Coin Cell Holder,

                                                            Laptop Software -- BST128-3



Description

BST128-3 is 128-channel battery analyzer for formation and capacity screening from 6.0 mA to 3000 mA, up to 5V. All channels of the analyzer can set one programma to charge and discharge 128 cells together by one computer software. The package includes a brand new laptop with Microsoft Windows 10 with 30 days free trial Microsoft Excel and the latest version of controller software installed and calibrated for immediate use. (Up to 20 sets of analyzers can be simultaneously controlled by one PC).

SPECIFICATION
Electricity requirement
  • 208 -240V AC
Power Consumption
  • 3200W
    •
Current
  • Range: 6.0mA - 3000mA
  • Accuracy: ±(0.05% of reading + 0.1% of range)
    •
Voltage
  • Range: 0.5 - 5V programmable
  • Accuracy: ±(0.05% of reading + 0.1% of range)
Data Register Conditions
  • Time interval: 1 - 900 seconds
Max Measurement Range
  • 9999 cycles
Channels
  • 128 channel programmable
Programs & Software
  • The software (TC5.3) with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries
  • Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, cycles, etc.
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.
  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently
  • During the test, the software will provide instructions and warnings for assistance
  • The calibration software can be used to calibrate the analyzer
Test Reports and Curves for analysis
  • Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
  • Data reports are created by the software. User can easily compare the performance of the batteries tested in channels both visually and statistically

Protection and Auto-recover
  • If the power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

Optionals Pouch Cell Fixture
  • If the battery is pouch type, please order the battery analyzer for pouch cell as the picture below

Laptop Computer
  • Brand new laptop with MS Window 10, MS Excel 2013 30 days free trial is included and latest version testing software are installed and calibrated for immediate use
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC. Notice: It is suggested to use an external hard drive to keep an instant backup of the collected data.

Dimension & Weight
  • 410 D x 720 W x 1780H, mm
