                       8 Channel Battery Analyzer (5V 40A per Channel) with Internal Resistance

                                                            Testing and Laptop & Software



Description

8 channel battery analyzing system for Li-ion, LiFePO3, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 5V and 40A per channel.
The hardware base on network communication design and software combine a DC Internal Resistance Analysis function when doing cycle charging/discharging, which ensures a stable connection and high integration testing platform.

SPECIFICATION
Working Voltage
  • 208 - 240V AC, 50/60Hz, Single phase
Max. Power Consumption
  • 0.2KW max. each channel
  • 1.6KW in total
    •
Voltage Measurement
  • Range: 0.01 - 5 V
  • Accuracy: +/- (0.1% of reading + 0.05% of range)
    •
Current Measurement
  • Range: 0.1 - 40 A
  • Accuracy: +/- (0.2% of reading + 0.1% of range)
Data Register Conditions
  • Time interval: 0.1 - 999 seconds
Cycle Measurement Range
  • 1 - 9999 times
Input Impedance
  • ≥ 10 m-ohm
Port
  • Ethernet (Switcher is provided to communicate with computer)
Channels
  • Eight independent programmable channels
  • Each channel can set different working modes and works independently

Software
  • Windows-based software interfaces for easy operation
  • Real-time monitoring windows and integrated graph/data windows
  • can set various working modes for measuring capacity and cycle life of all
    types of rechargeable batteries, such as constant
    current discharge, constant current charge, constant voltage charge, rest,
    as well as voltage, current, time, capability, negative voltage slope, and other limit conditions
  • Provide timely instructions, warnings, and intelligent support

Test Cell ( optional)

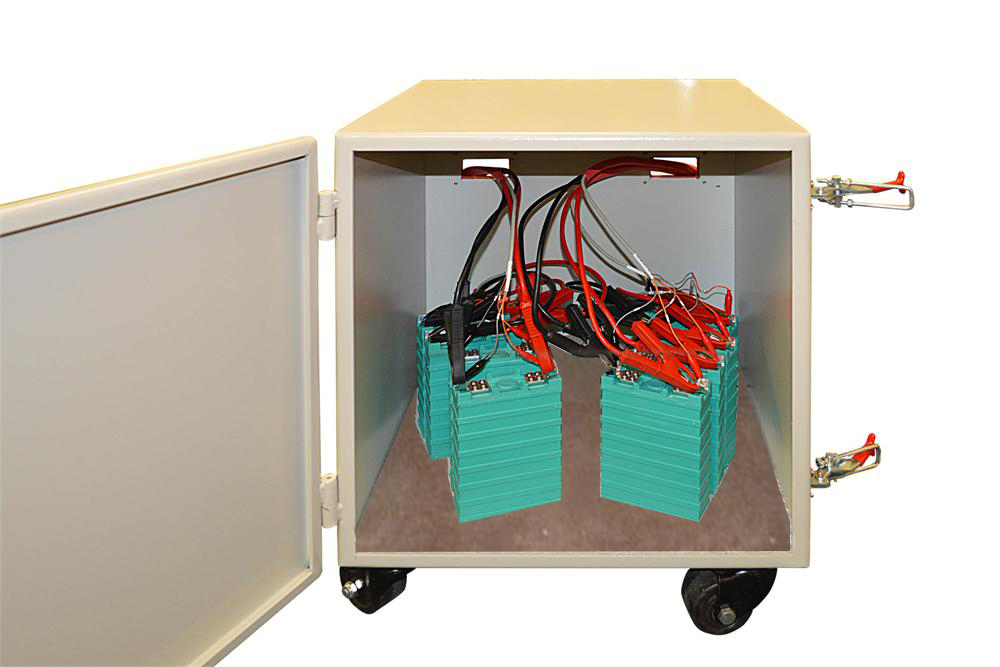

  • Test cell ( pouch cell) up to 80x60mm area will be placed inside of load frame.
  • Optional split coin cell and split pouch are available by click picture below
  • Test cells are NOT included in the standard package.


Dimension & Weight
  • 26"(L) x 20"(W) x 20"(H), 90 kg
    •
