Double Side R2R Coating System with Max. 250mm Width For Battery Electrodes - MSK-AFA-DS300
×
Product Introduction
MSK-AFA-DS300 is a vertical roll to roll coater designed for preparing double-sided electrode sheets for Li-Ion
batteries, Graphene thin film coating, ceramic coating, and NiMH batteries. It is excellent for making the double
coating on a substrate and has a small footprint (L 1000 mm x W 1000 mm) to save lab space. The coater also can
be used for making double coating for other materials from a slurry.
Specifications :
Working Voltage
AC 208 - 240 V
50/60Hz
Single Phase
Max. Power Consumption
6 KW (40A Air breaker required)
Coating Method Please mouseOver the picture
Blade Coating technique
Coating Thickness Precision: +/- 0.003 mm
The coating thickness precision depends on the coating material.
Max. Coating Width
250 mm
Coating Thickness Range
3 - 50 um
For most kinds of battery electrode coating materials
It depends on the wire rod, the physical property of the coating material, substrates, and coating speed
Thickness Precision
± 3 µm
Max. Drying Temperature
150°C
Temperature Accuracy
± 1°C
Heating Zone Length
800 mm (30")
Reeling/Unreeling Shaft
75 mm (I.D.)
Max. Reeling/Unreeling Diameter
300 mm (O.D.)
Max. Coating Length
Depending on the coating and substrate thickness.
Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run

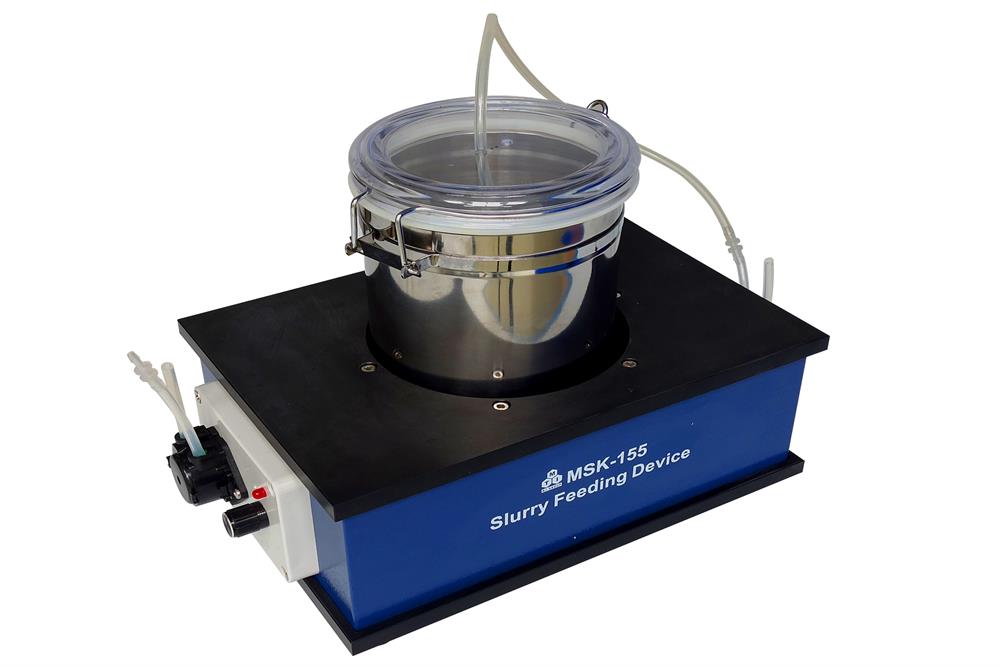

Optional: You may need a slurry pump to feed slurry into the dipping container and to make long coating
Exhaust Port Size
127mm O.D.
Compressed Air
0.5-0.8 MPa (Air compressor not included. Please click here to order)
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

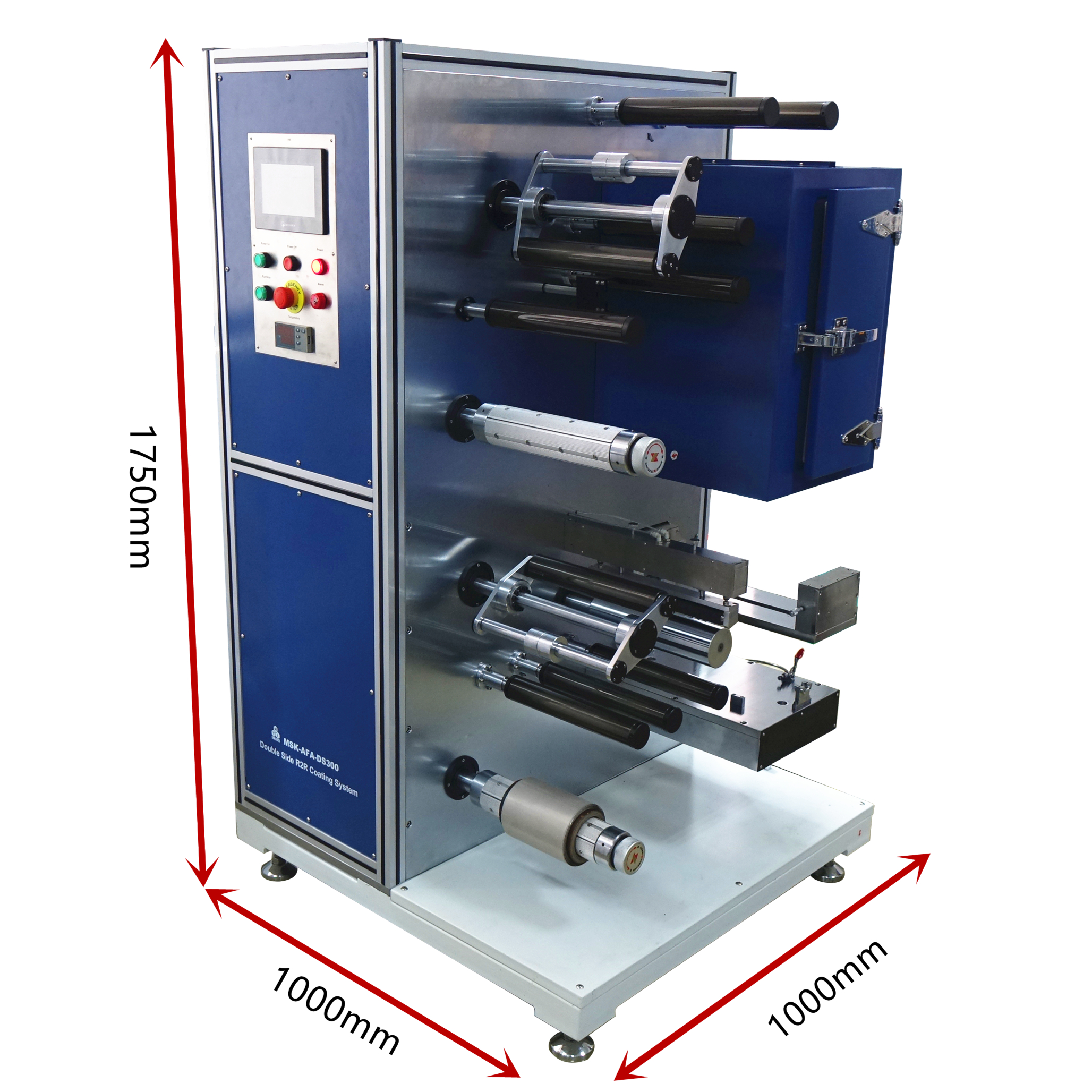

Product Dimensions
Click on the images below:
×
Net Weight
1,500 kg (3,300 lbs)
Shipping Dimension
70" x 45" x 55"
Application Note
You may order Dual-Filtration System for NMP Vapor and connect it to the coating system for keeping environmental healthy. Please click Pic.below for details.
