Roll to Roll Electrospinning System with Syringe Pump and Heating Bed - MSK-ESC-R2R
×
Product Introduction
MSK-ESC-R2R is a bench-top electrospinning system with automatic r2r substrate feeding and retrieving unit.

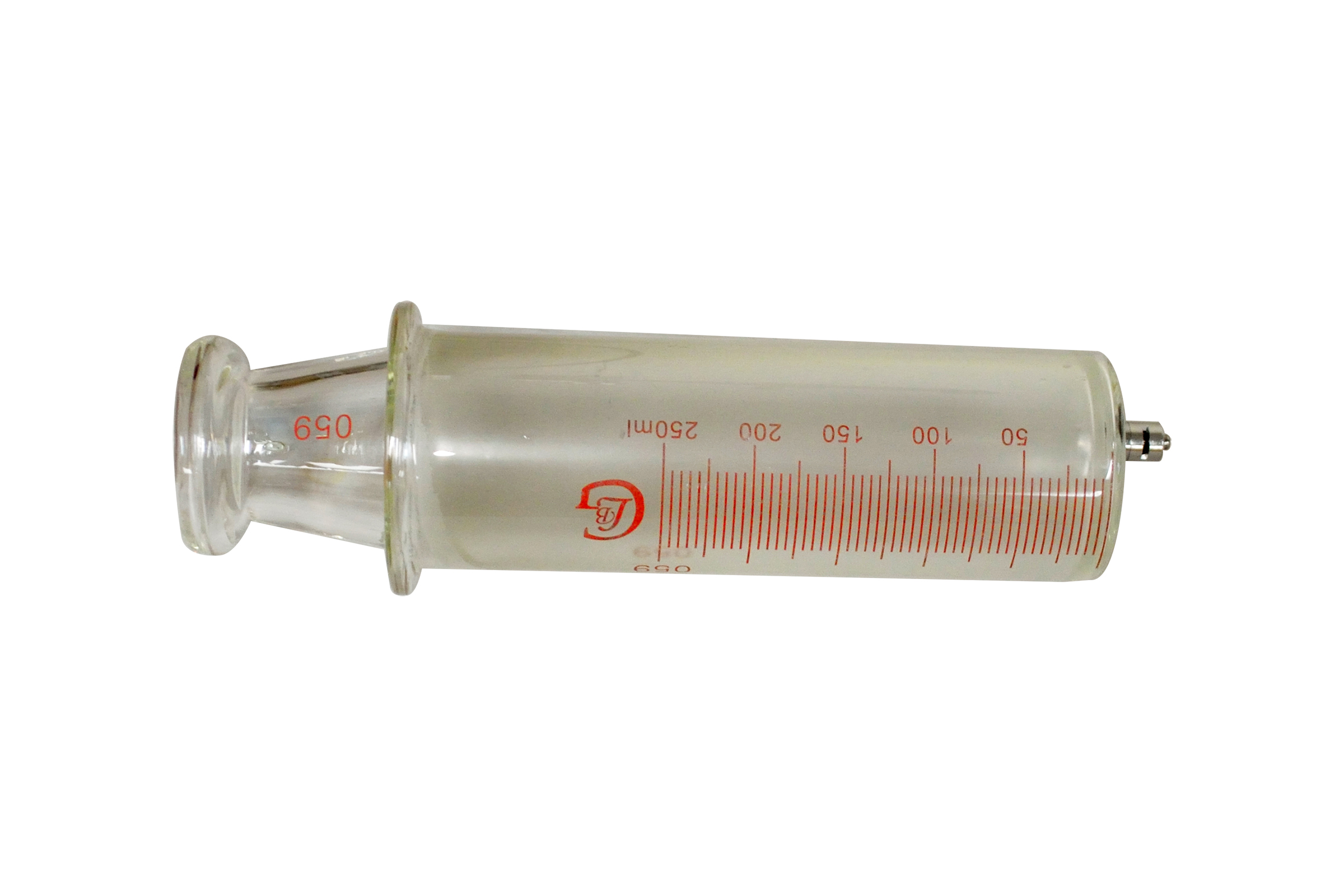

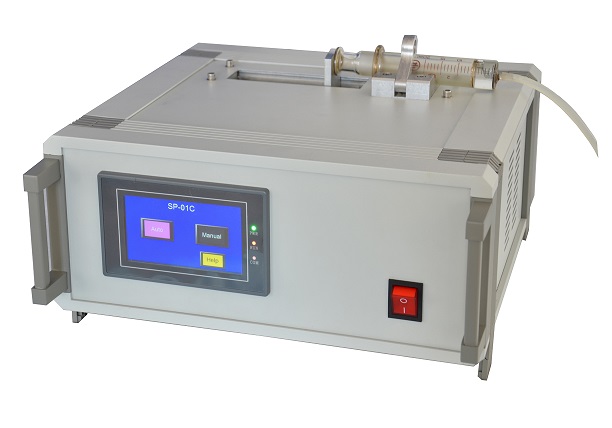

The syringe pump that renders a smooth and uninterrupted flow enabling uniform spinning. The high voltage power
supply delivers 0-50 kV output voltage range with a maximum current capacity of 1 mA. Heatable vacuum bed
assists coating bake-out before collecting. Such system provides an attendant workflow for nanofiber spinning,
coating bake-out, and collecting.
Specifications :
Features
Linear configurated 5 syringe needles ensures a uniform coverage over up to 160mm width.
Automatic roll to roll system with precise rolling speed control.
Heating bed up to 100C for coating bake-out.
Syringe pump provides a constant stream flow of polymer base solutions.
Single voltage supply cable minimizes the repulsion of the jets between the spraying heads.
Removable spraying heads accommodates various coating widths.

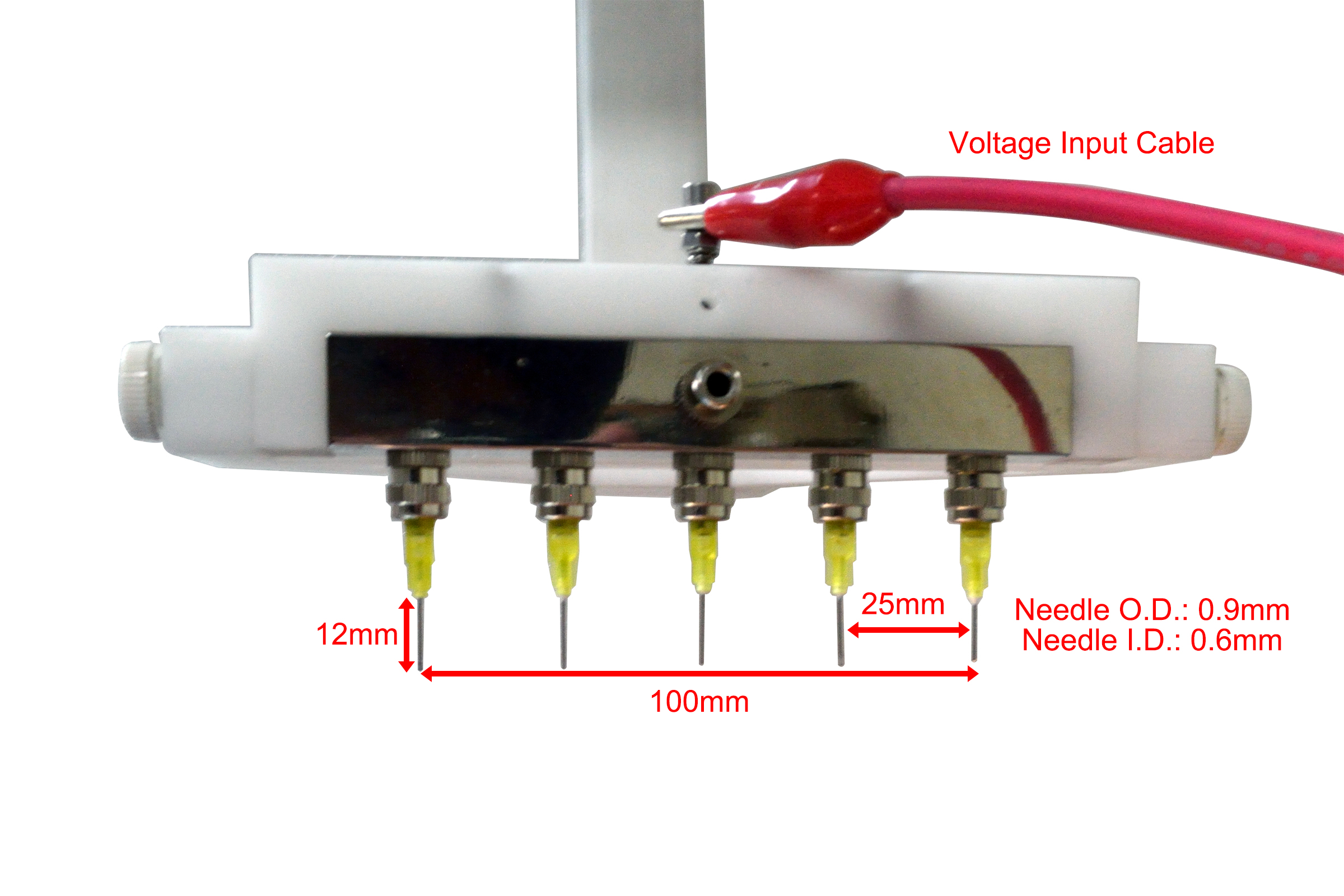

Spraying Head (Needle) and Supporting Stand
Hight and position adjustable supporting stand
Removable Spraying Heads (up to 5 needles).
Single Voltage input cable minimizes the repulsion of the jet between the needles.
Distance between each needle: 25mm
Needle O.D.: 0.9mm
Needle I.D.: 0.6mm
Needle Length: 12mm
Maximum distance from needle to heating bed: 235mm
Minimum distance from needle to heating bed: 70mm
High Voltage Power Supply
0 - 50 kV single output, 1 mA max current
Digital voltmeter and current meter
Output voltage and current can be set by using knobs on the front panel and read from the digital display
Constant current / constant voltage modes available
PID temperature controller with the precision of +/- 1C.
Heats up to 100C
208 - 240 VAC
2000W Max Power.

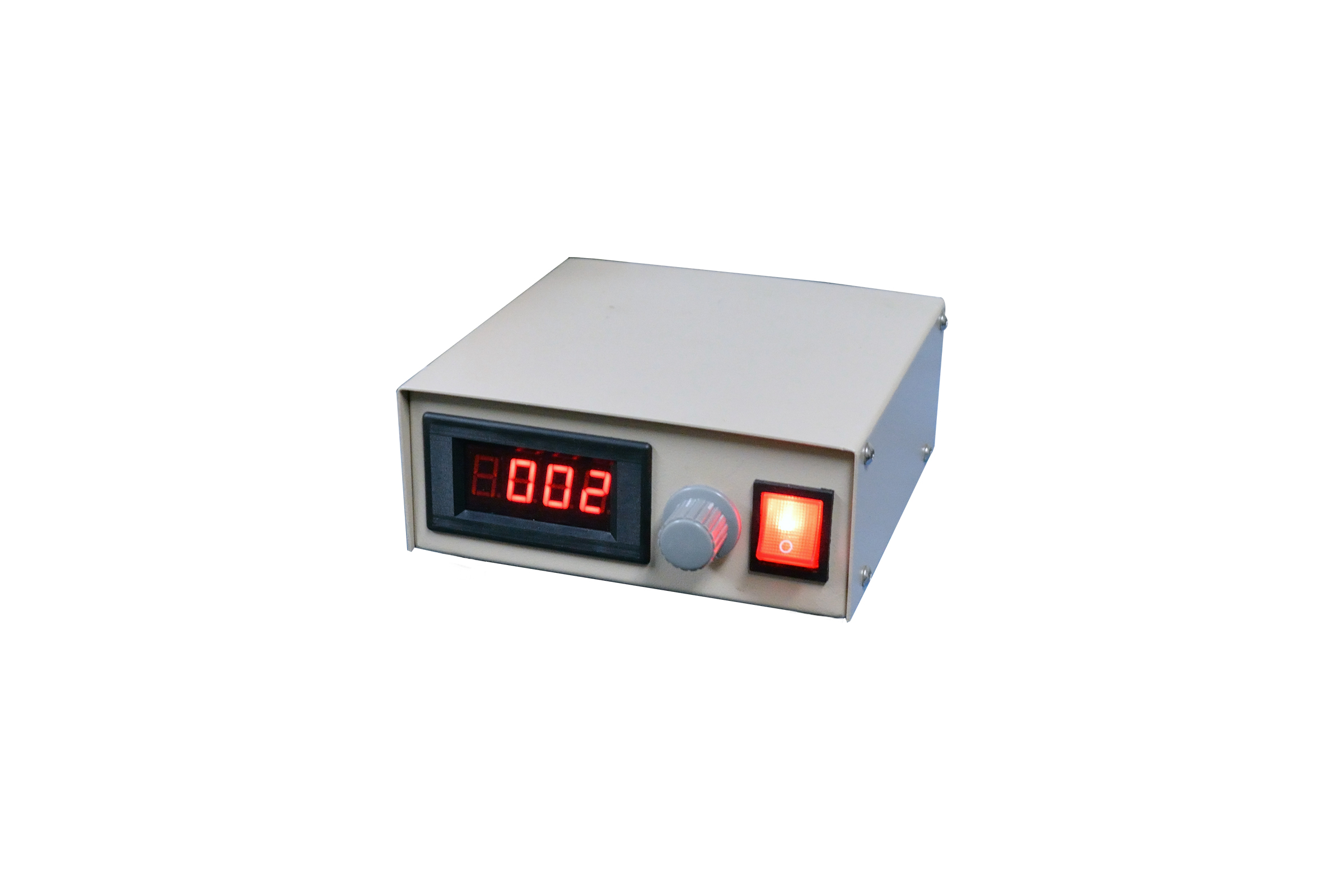

Roll to Roll System
Compact roll to roll system up to 200mm width
Motor rpm (Controller display) Range: 1 ~ 41rpm
Gear Head's reduction ratio: 100k
Actual substate traverse speed range: 2.2 mm/s ~ 117.2 mm/s
110VAC
Dimension Please mouseOver the picture
Heatable Vacuum Bed with the Roll to Roll system and stand
Total dimensions: 805mm(L) x 435mm(W) x 565mm(H)
The height of the Vacuum Bed: 180mm.
The height of needle holder: 385mm.
Sample Display
The picture below is the result of the electrospinning coating experiment that conducted by MTI using the mixture of PVDF and DMAC with the weight ratio of 1:20.
.jpg)
