Advanced Metallurgical Microscope with Polarizing Darkfield & Dual Lights + 5.0 MP Digital Camera
❮
❯
|

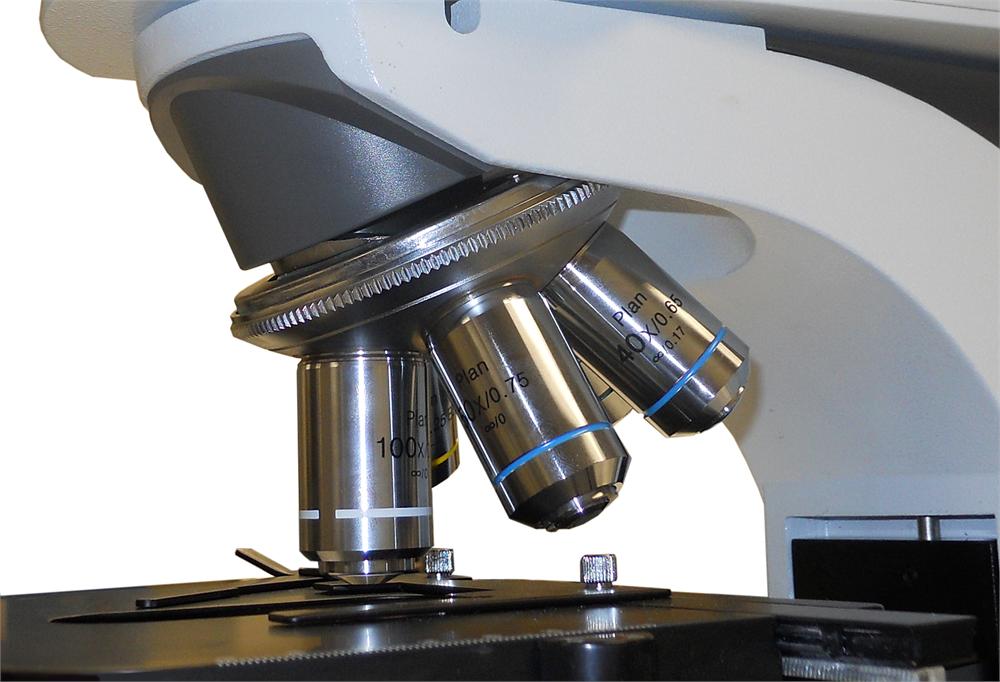

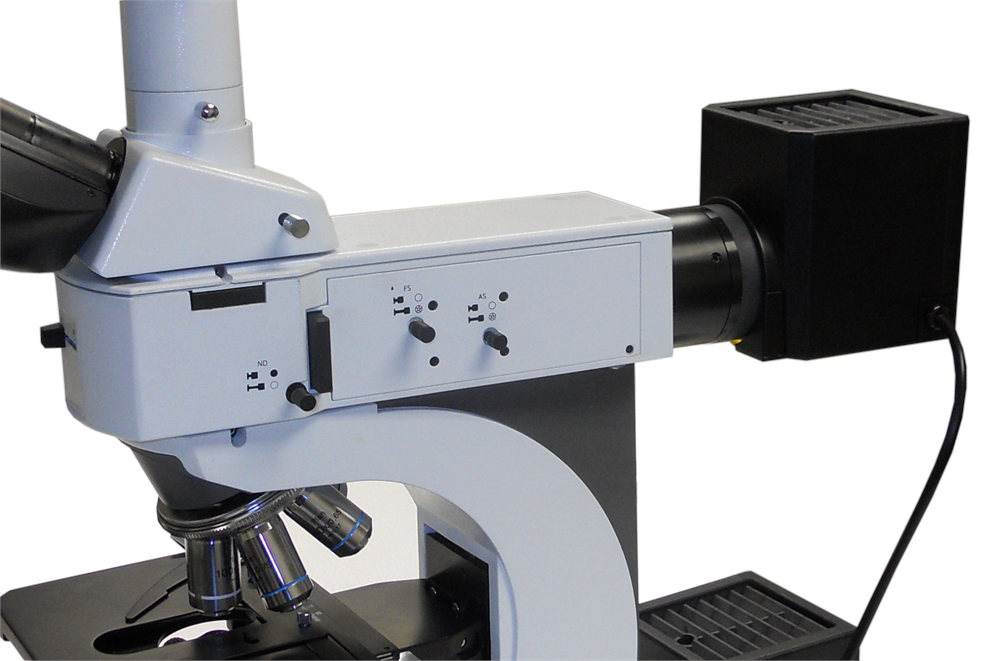

- The microscope is an up-right reflected and transmitted metallurgical microscopy system with a USB digital image camera, and comes with a quintuple nosepiece, seven levels of infinitive Plan objectives 5X/0.12, 10X/0.25, 20X/0.4, 50X/0.75, 100X/0.9, 40X/0.65, 100X/1.25. A built-in polarizer & analyzer, dark field-viewing device, and both reflected (EPI) & transmitted illuminations.
-
The high-resolution color USB digital camera captures microscope images and displays live video on your PC screen. It offers 5.0 M pixel resolution and is compatible with Windows 8. Its built-in reduction lens gives the same field of view images on your PC screen as that seen through eyepieces. Using the user-friendly software, you can edit microscope images on your computer or email them to your friends or colleagues.
-
Large mechanical stage with stain resistant finish.
-
Low position stage traveling controls.
-
Full optical glass elements.
-

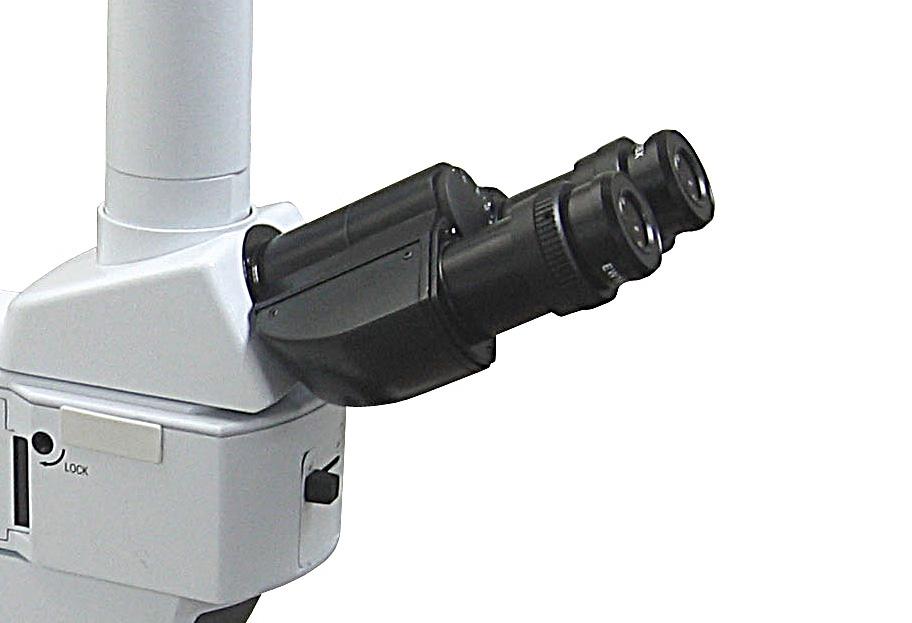

Adjustable interpupillary distance.
-
Adjustable diopters on both eye tubes.
-
Measuring length, angle, area and etc. across microscope images.
|
|
|
