Two Channel Battery Volume Expansion Test System with Laptop& Software - BST-UBA5-VE




      Product Introduction

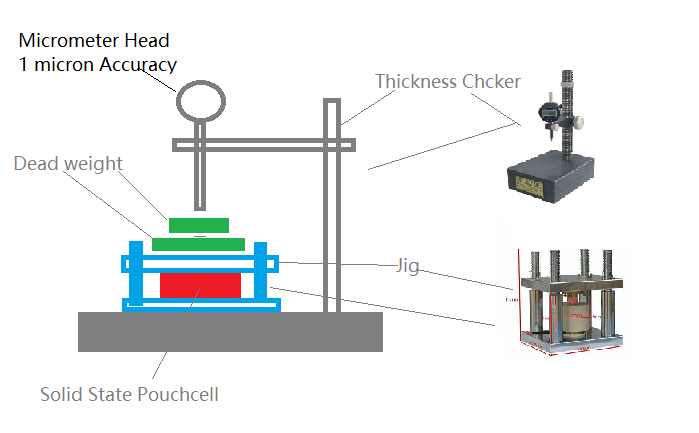

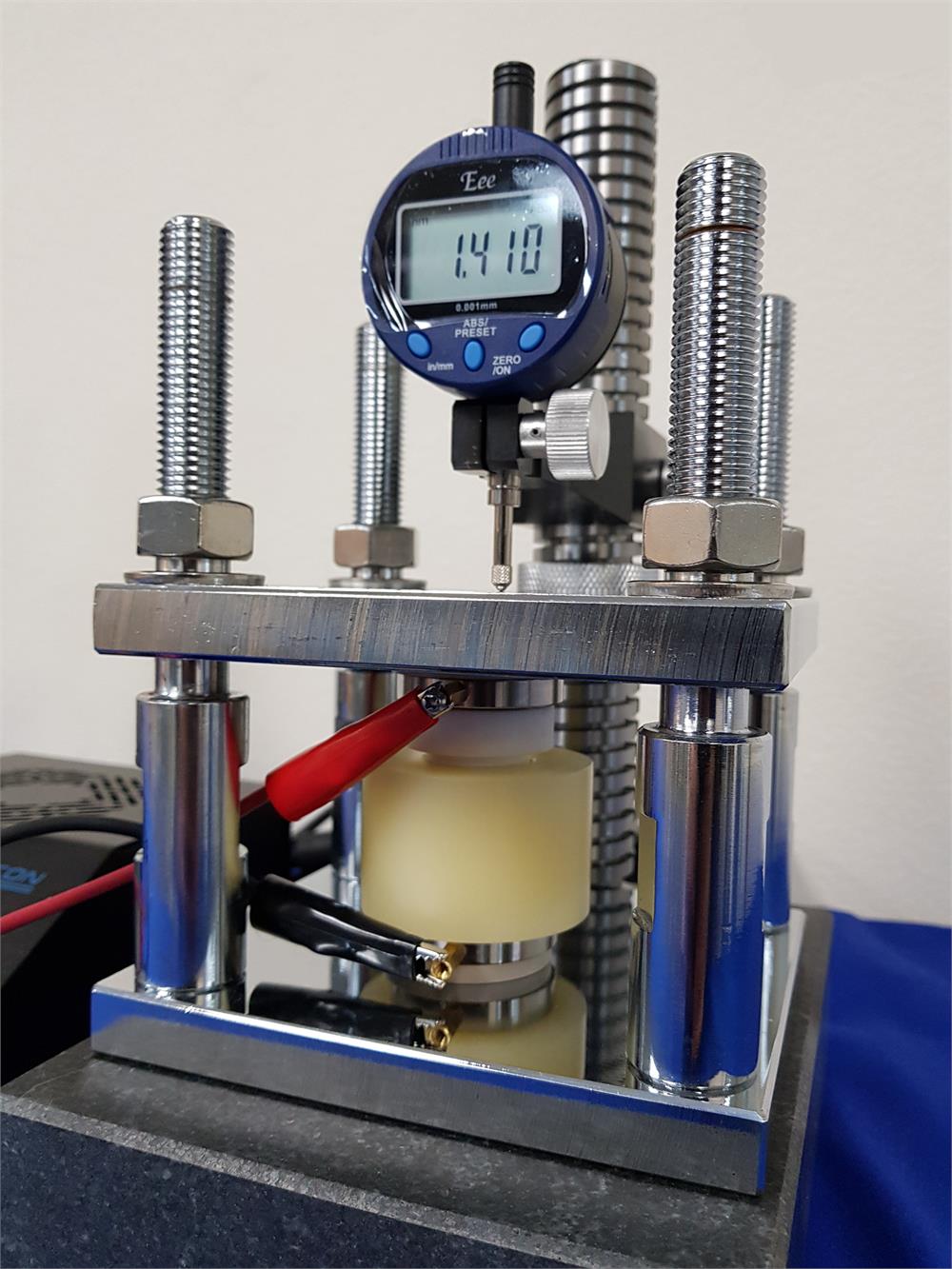

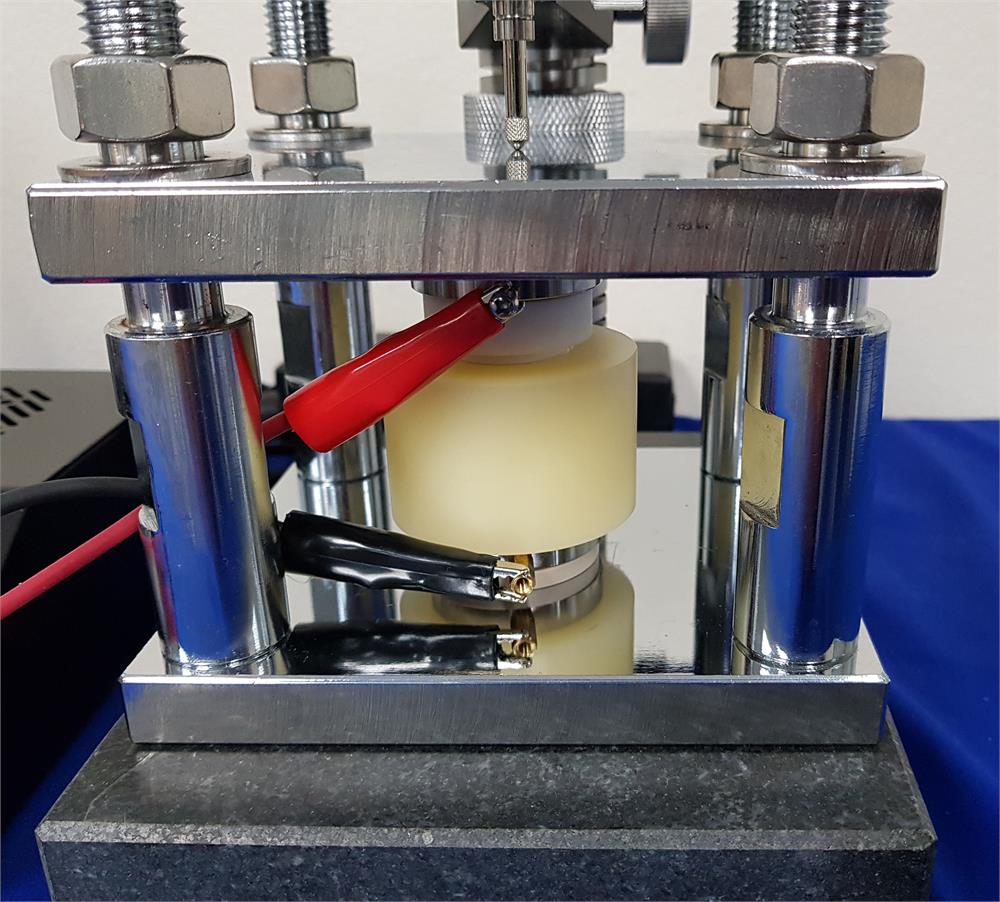

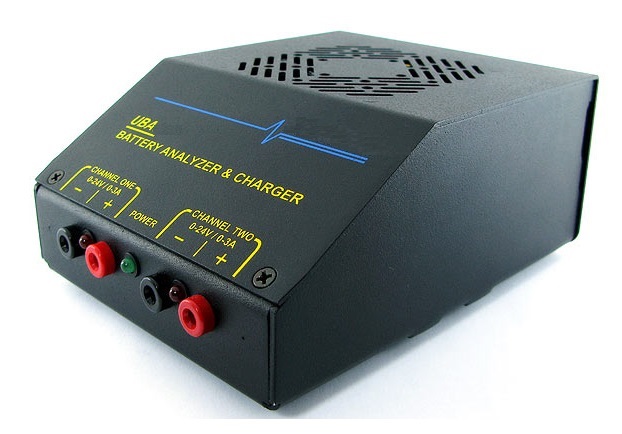

      BST-UBA5-VE is an ideal solution for measuring the volume / thickness change of the electrode materials of pouch       battery during the charge / discharge cycles. Such a package consists of a compact dual channel battery cycler, load       frame fixtures with precise micrometers and a lab top with Labview based testing software installed.

      Specifications :
      Electrical Requirements
  • 100~240VAC, 50/60 Hz, AC to DC adaptor is included
  •
      Battery Cycler Working Voltage
  • Voltage Range: 0-15 V
  • Accuracy ±0.2% rdg ±10mV
  • Resolution: 1 mV

      Battery Cycler Charging & Discharging Current
  • Charge at 1 mA - 2000 mA per channel
  • Discharge at 12mA - 3000 mA per channel
  • Accuracy ±0.5% reading ±2mA
  • Resolution 1mA
  • Power supply is with universal input 100~240VAC, and 15VDC output for battery tester
      Testing Channels
  • Two independent testing channels. Each channel can work under different modes to cycle a battery at 1mA - 2000mA, upto 15V.
      Power limit
  • 45W per channel
      Data Sampling
  • 0.1~999s
      Load Frame & Micrometer

  • Working space of the frame is 90 mm L x 70 mm x 150 mm H
  • You may add dead weight on the top plate or use a torque wrench to tighten the holding screws to find the critical pressure needed to confine the battery volume expansion
  • Digital micrometer: 1 micron (0.001mm) resolution
  • Range: 0-12.7mm
  • Accuracy: 0.004 mm
  • Power supply: CR2032 3V Li-ion battery
  • Operating temperature: 0 - 40 °C
  • The data export is available with the battery testing software. It is capable of data logging, export, statistical analysis, which is ideal for tracking battery volume expansion over multiple charge-discharge cycles
