The IMR 1050X series enables HVAC professionals to accurately test and service all residential combustion appliances.

Applications:

Confirm set up parameters (to manufacturers’ specifications)
Verify proper combustion, equipment efficiency and integrity.
Analyze combustion gas makeup and stack gases.
Set gas pressures.
Measure temperatures for live fire of gases, temperature rise and differential drops across coils, inlet and superheat readings.
Perform pressure test for drops across coils, gas pressures, limit switches, building pressures and zone pressures.
Document equipment performance before and after servicing tests to show compliance

Features:

Flue Temperature 20-2400°F /-29~1315°C
Inlet Temperature (probe T2) 20-2400°F / -29~1315°C
Inlet Temperature (ambient) 32-122°F / 0~50°C
Net Temperature (ΔT) 20-2400°F /-29~1315°C
O2 Oxygen 0-21%
CO Carbon Monoxide 0-2000 ppm (4000 max 15 min)
CO2 Carbon Dioxide 0-20%
Efficiency 0-99.9%
Excess Air 0 - 250%
CO/CO2 ratio 0-0.999
NO Nitric Oxide 0-100 ppm
Pressure ±32” wc / ±80mBar
Dimensions (200mm) x 3.5” (90mm) x 1.8” (45mm
Weight 2.2lb (1kg)
Probe (L) 11.8” (300mm) x (D) 0.25” (6mm) with 7.8” (200mm); 6ft (3m) neoprene hose
Ambient Operating Range 32°F to 104°F (0°C to 40°C) at 10 - 90% R.H
Battery Life Standard “AA” (x4) >8 hours continuous use
Other ranges are available upon request.

Included :

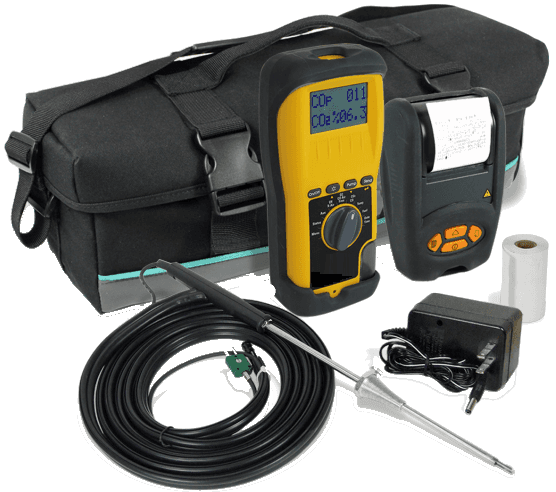

Optional :
