High Precision Tension / Compression Load Cell with Digital Indicator, Software & Laptop, 50 g to 1 kg Capacity
❮
❯
|
- High precision tension / compression load cell (50, 100, 200, 500, 1000 g capacity) with digital indicator, software & laptop. It has high performance (0.05% error full scale), high safe overload (1000%), software control and data logging, and compatibility with vacuum and controlled gas atmosphere, which makes it an ideal tool for customized gravimetric analysis system, such as thermogravimetric analysis (TGA
-
Digital Indicator
-
Power: 100 - 240 V
-
Display Update: 5/sec
-
Reading Speed: 230 readings per second
-
Error: 0.01% of reading. max
-
Operating Temperature: -10 to 50 °C
- Laptop & Software Control.
-

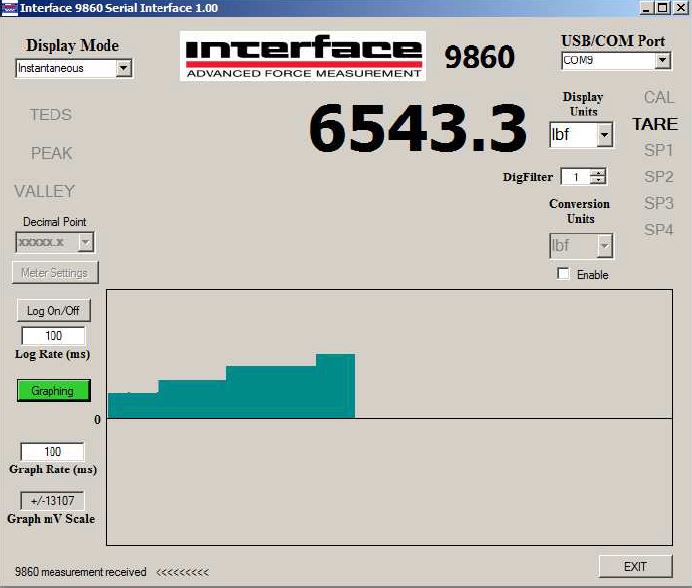

Software for load cell / indicator setup, display, data logging and output is pre-installed on the laptop and fully configured
-
Net Weight
|
Model / Capacity
|
50 g (0.5 N), 100 g (1 N), 200 g (2 N)
|
500 g (5N), 1 kg (10 N)
|
|
Load Cell Accuracy
|
- Nonlinearity: 0.05% full
scale, max
- Hystersis: 0.05% full
scale, max
- Nonrepeatability: 0.05% full
scale, max
- Creep, in 20 min: 0.05%,
max
- Zero balance: 2% full
scale, max
|
- 0.05% full scale, max
- 0.03% full scale, max
- 0.02% full scale, max
- 0.025%, max
- 3% full scale, max
|
|
Load Cell Temperature
|
- Compensated
Temperature: -10 to 45 °C
- Operating
Temperature: -55 to 90 °C
- Temperature
Effect on Output: 0.002%/°C, max
- Temperature
Effect on Zero: 0.004%/°C, max
|
- -10 to 45 °C
- -25 to 80 °C
- 0.02% full scale, max
- 0.002%/°C, max
- 0.003%/°C, max
|
|
Load Cell Safe Overload
|
- Safe Axial Overload:
1000% of capacity
- Safe Side Overload:
500% of capacity
|
- 1000% of capacity
- 500% of capacity
|
|
Load Cell Calibration
|
- Tension (default) or compression calibration
- IST certified calibration with traceable calibration file
|
|
Load Cell Electrical
|
- Excitation Voltage: 12 VDC max
- Rated Output: 2 mV/V
- Cable Length: 1.5 m
|
|
|
Size
|
- Load Cell: 50 mm L x
21 mm W x 50 mm H
- Indicator: 96 mm L x
130 mm W x 48 mm H
|
- Load Cell: 60 mm L x
16 mm W x 63 mm H
- Indicator: 96 mm L x
130 mm W x 48 mm H
|
|
|
|
