This is a customized vertical tube furnace from 1200 °C to 1700 °C with TGA (thermal gravimetric analysis) function. Compared with conventional TGA device, the TGA furnace can load larger sample up to 100 g to get a more accurate result for industry and can be operated under both vacuum and controlled gas atmosphere, even under hydrogen gas with proper modification to research phase transition during material processing. The TGA furnace also may connect a gas analysis device to study gas composition change during heating and weight change.

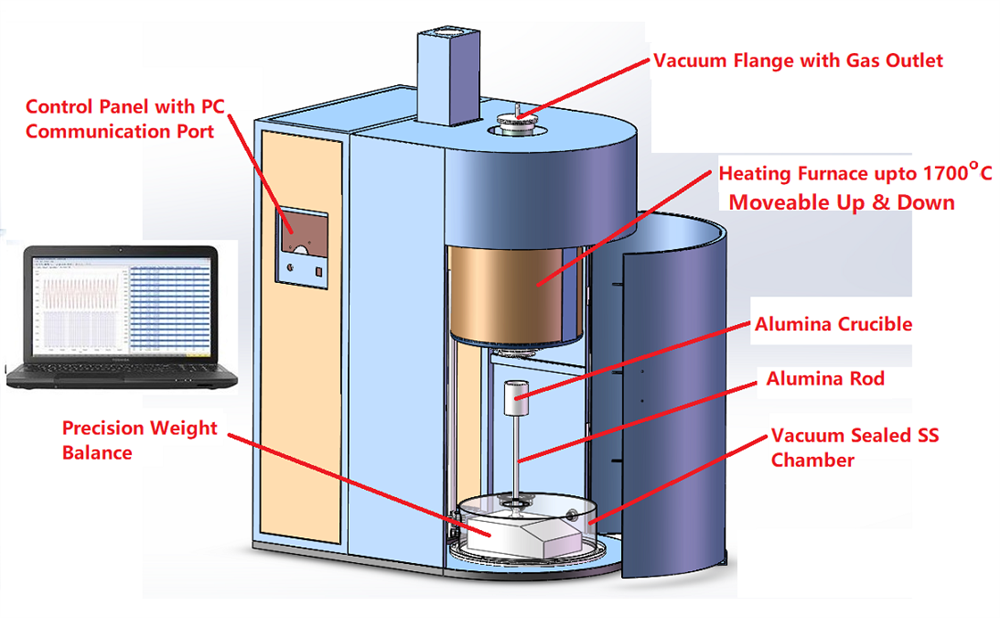

Furnace Structure
- Using one of MTI tube furnace and modifying into vertical
- Temperature range is optional from 1200 ℃ to 1700 ℃
- Click Picture below to see furnace specifications

Tube Size and Material
- 1" OD - 2" OD selectable
- For < 1200°C Max. please choose quartz tube
- For < 1500°C, please choose Mullite tube
- For < 1700°C, please choose Alumina tube

Force Sensor
- High precision force sensor with 0.05% accuracy
- Load sample up to 100 g for more accurate TGA result
- Force Sensor output data will connect to PLC or PC to show weight change curve with temperature

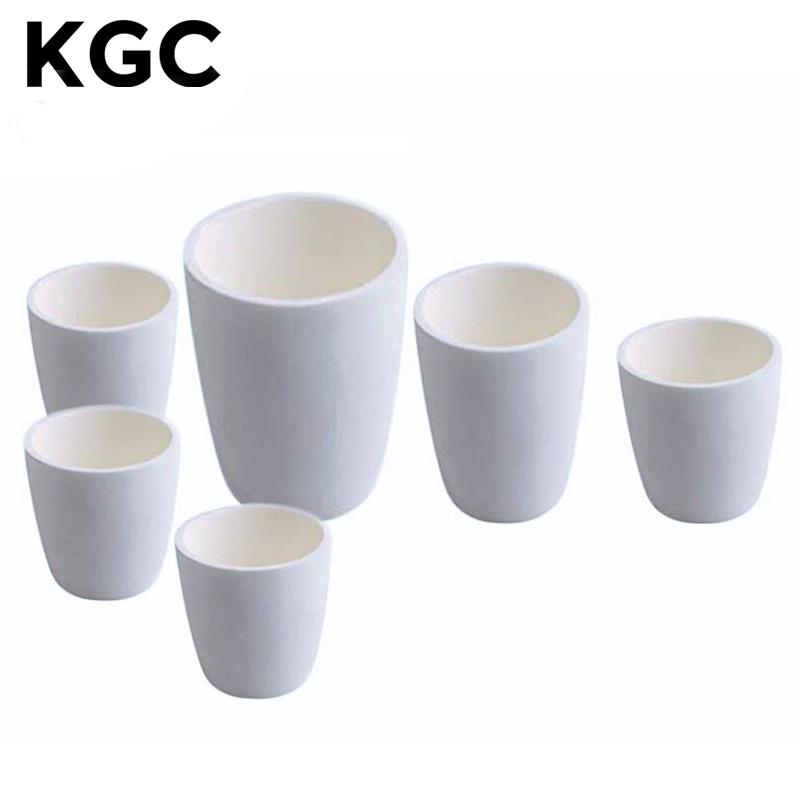

Crucible
- The small crucible is hang by Pt wire into the furnace center and connect with the load cell
- The standard crucible is made of alumina, but also can be quartz, YSZ based on customer 's application
- The customer decides crucible size range

Temperature Controllers		Programmable temperature controller Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection. +/- 0.1 ºC temperature accuracy.

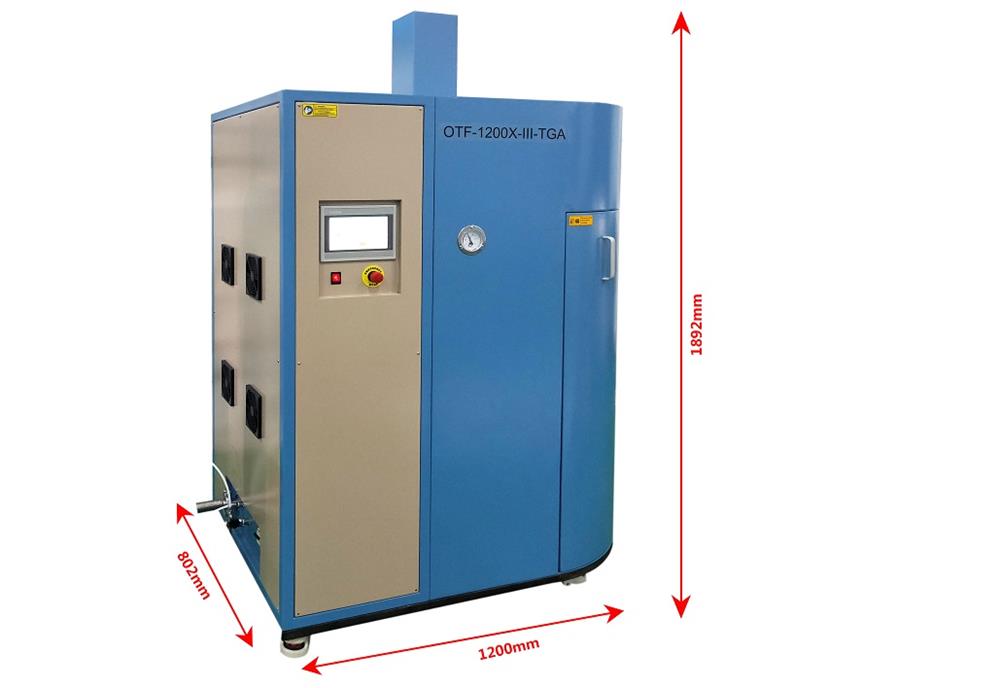

Dimension		802 mm (L) x 1200 mm (W) x 1892mm (H) ×
Vacuum		A KF25 vacuum port is built-in to connect a vacuum pump Achievable vacuum level depends on the selected vacuum pump Temperature Effect on Output: 0.002%/°C, max
